Liquid Paste Powder Or Granule Automated Packaging Machine

Name: Liquid Paste Powder Or Granule Automated Packaging Machine
Brand: LTPM CHINA
Price: 1 USD

Wholesale Liquid Paste Powder Or Granule Automated Packaging Machine from china suppliers

Brand Name : LTPM CHINA

Model Number : RotaTop-Series

Certification : CE, GMP, SGS, BV

Place of Origin : Zhejiang Province,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 45 sets/month

Delivery Time : 25 days

Packaging Details : Export Standard Wooden Case

Working position : eight-working position

Pouch material : Laminated film PE、PP

Pouch pattern : W:100-210mm L:100-350mm

Filling Scope : 10-5000g（ The screw attachment is to be changed）

Speed : 10-45pouches/min（The speed depends on the product status and flling weight））

Voltage : 380V 3phase 50HZ/60HZ

Contact Now

Automatic Premade Sachet/Bag/Pouch Filling Sealing Packaging Machine

For Packing Liquid Paste Powder Or Granule

Machine introduction:
Rotary packing machine is developed for premade pouch, stand-up pouch with or without zipper. It is suitable for packing product of powder, irregular shape, thick liquid and liquid, such as gourmet powder, chicken powder, seasoning powder, candy, fruits, nut, pet food, roasted seeds, puffed food, frozen food, small hardware and hand sanitizer.

Option Part of Weighing&Packing System
*Z Type Bucket Elevator--- --------------------------for conveying material( Not for Powder)
*Multihead Weigher( 10head, 14head, 20head...) ---------------for weighing(not powder)
*Screw Conveor & Auger Filler---------------------This is for Powder material Conveying
*Working Platform 304 stainless steel-------------------------------for supporting equipment
*Finished Product Conveyor------------for conveying and collecting of finished product.

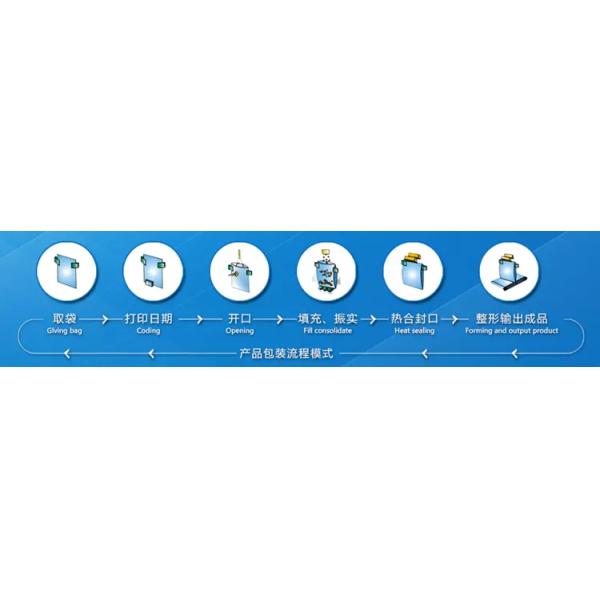

Working Process:
1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
 2.Coding: The machine run to the second working position, it codes the bag.
 3. Opening bag:The machine run to the third working position, it opens the bag.
 4.Filling: The machine runs to the fourth working position, it fills the bag.
 5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
 6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle


Technical Parameters:

Working position	eight-working position
Pouch material	Laminated film PE,PP
Pouch pattern	stand-up&zipper pouch
Pouch size	W:100-210mm L:100-350mm
Filling Scope	10-5000g( The screw attachment is to be changed)
Weight Accuracy	Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed	10-45pouches/min(The speed depends on the product status and flling weight))
Voltage	380V 3phase 50HZ/60HZ
Total power	8.5KW
Compress air	0.6m3/min(supply by user)
Size	190015701700mm
